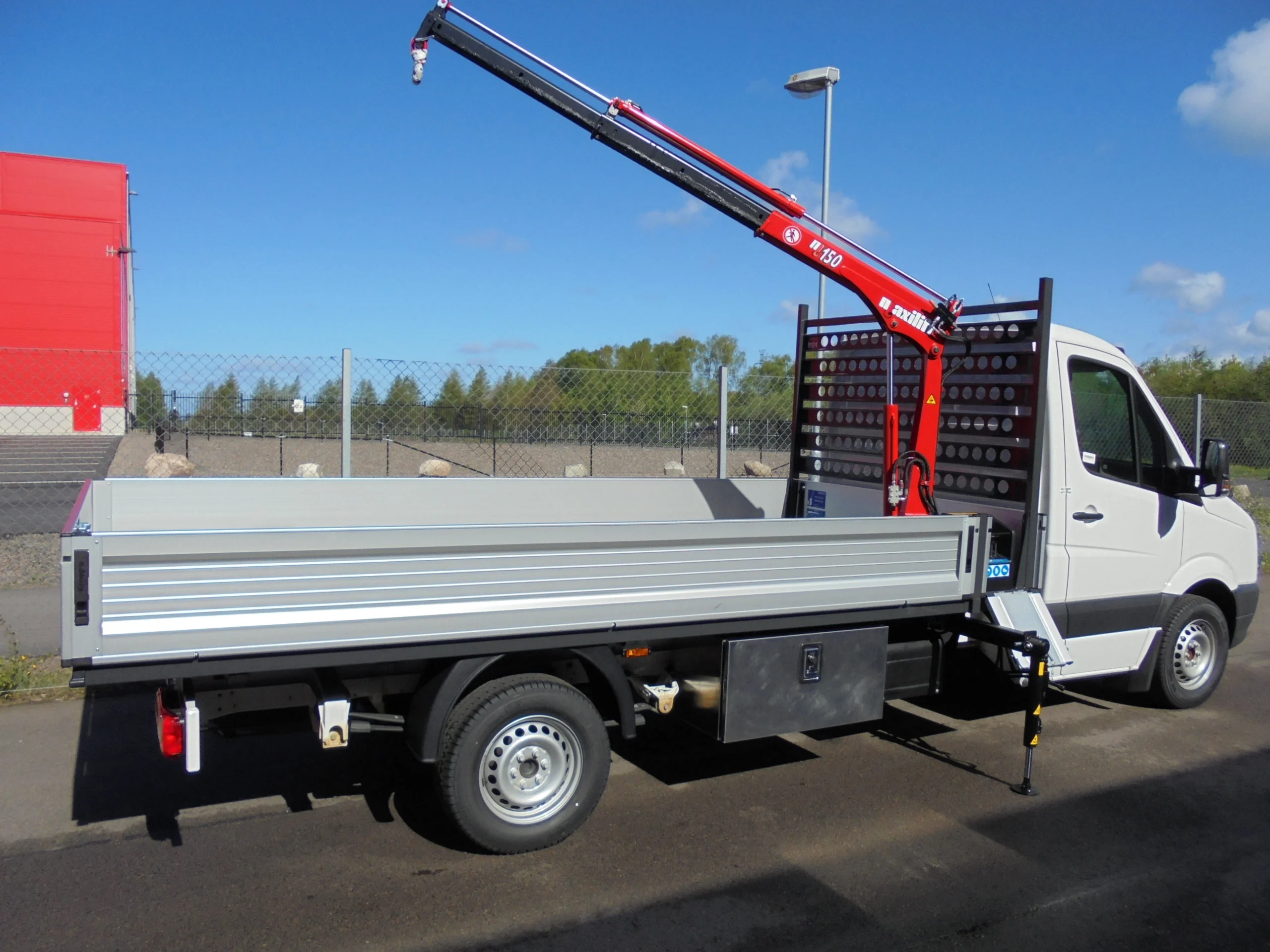

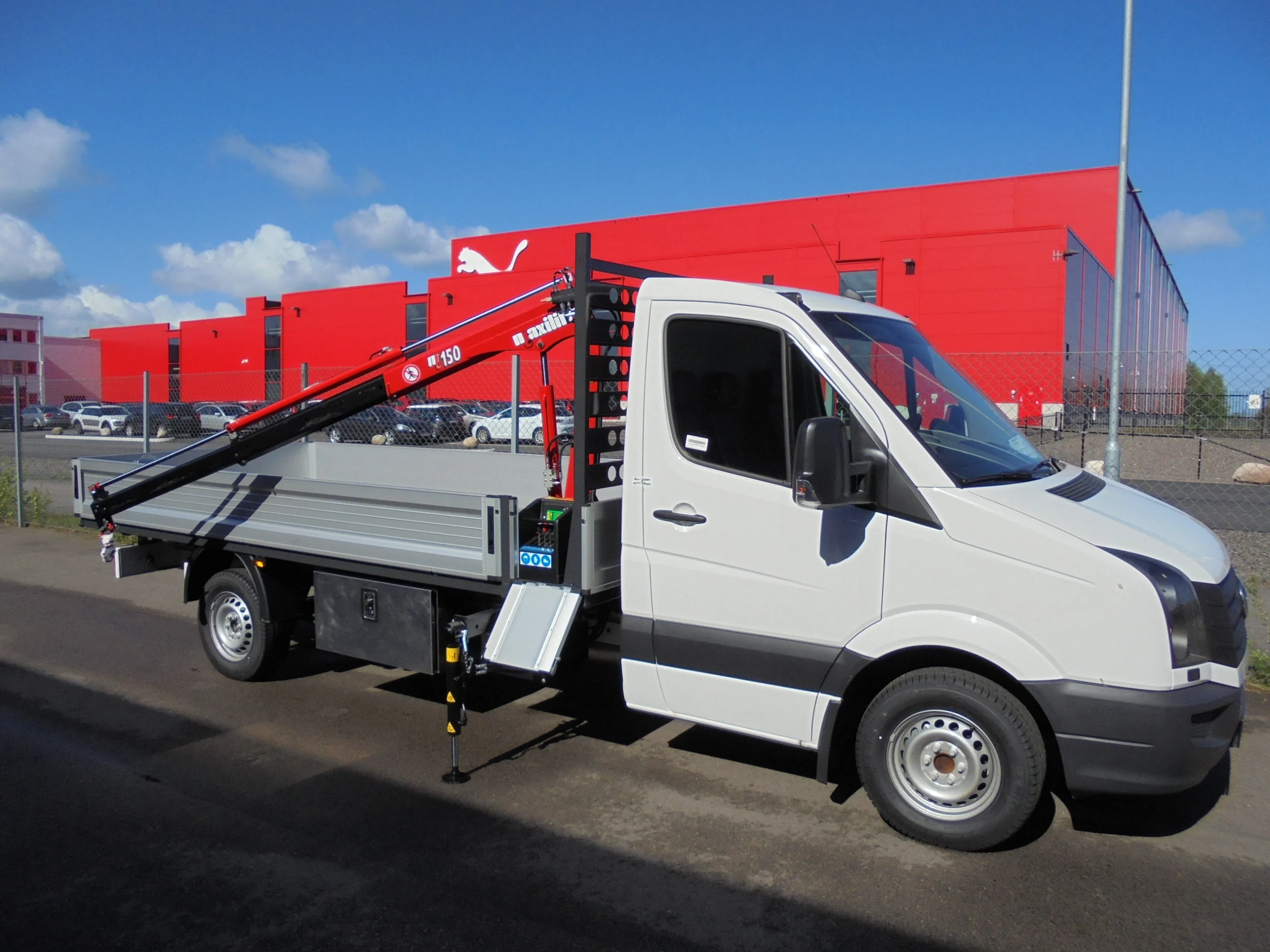

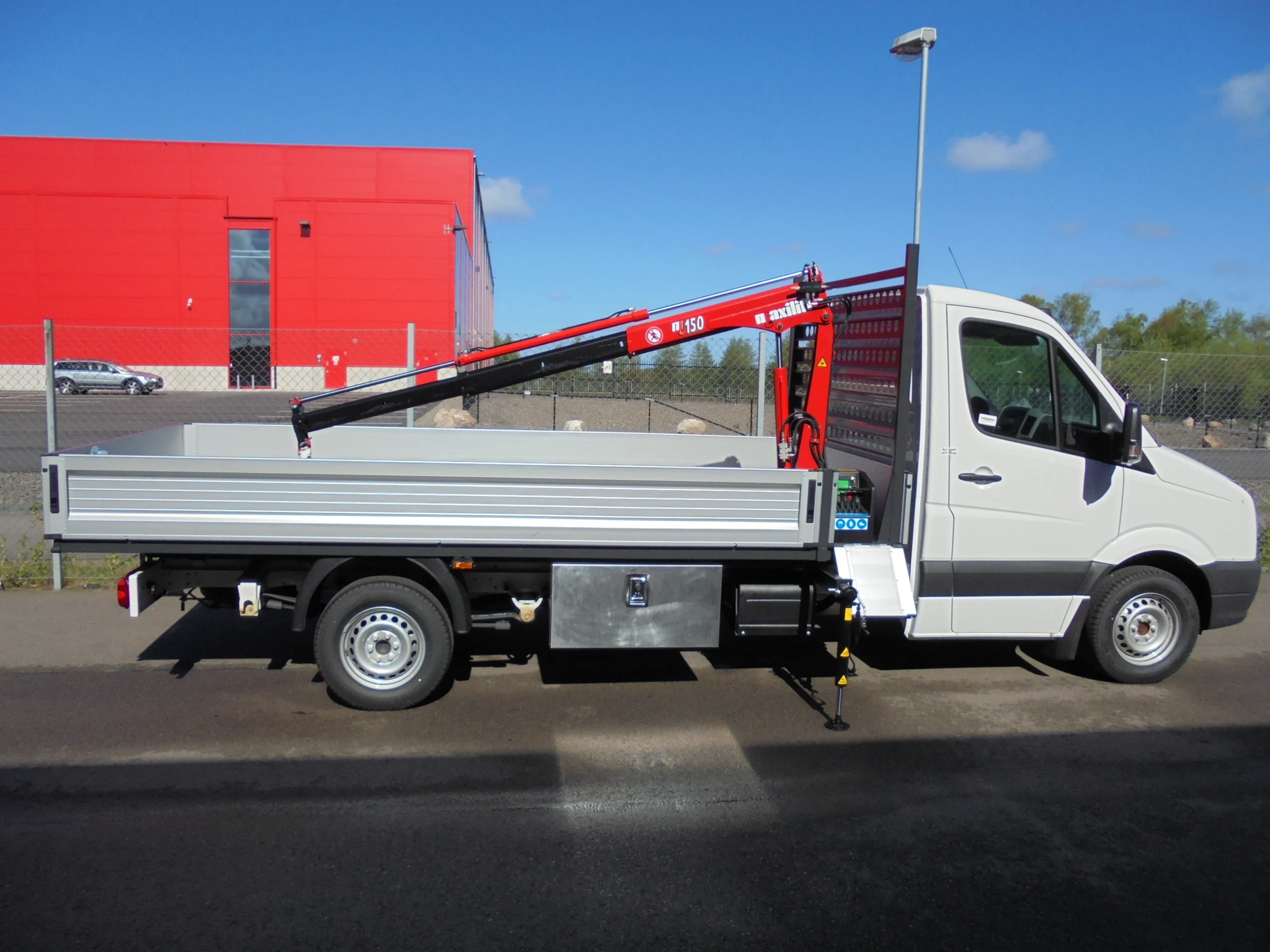

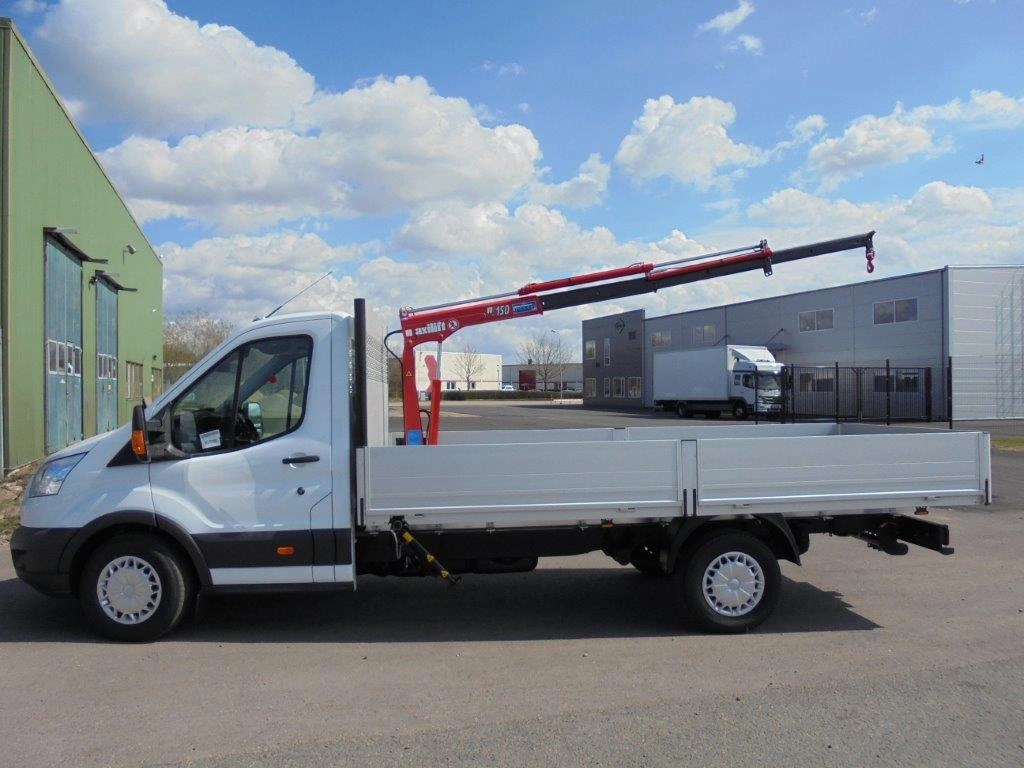

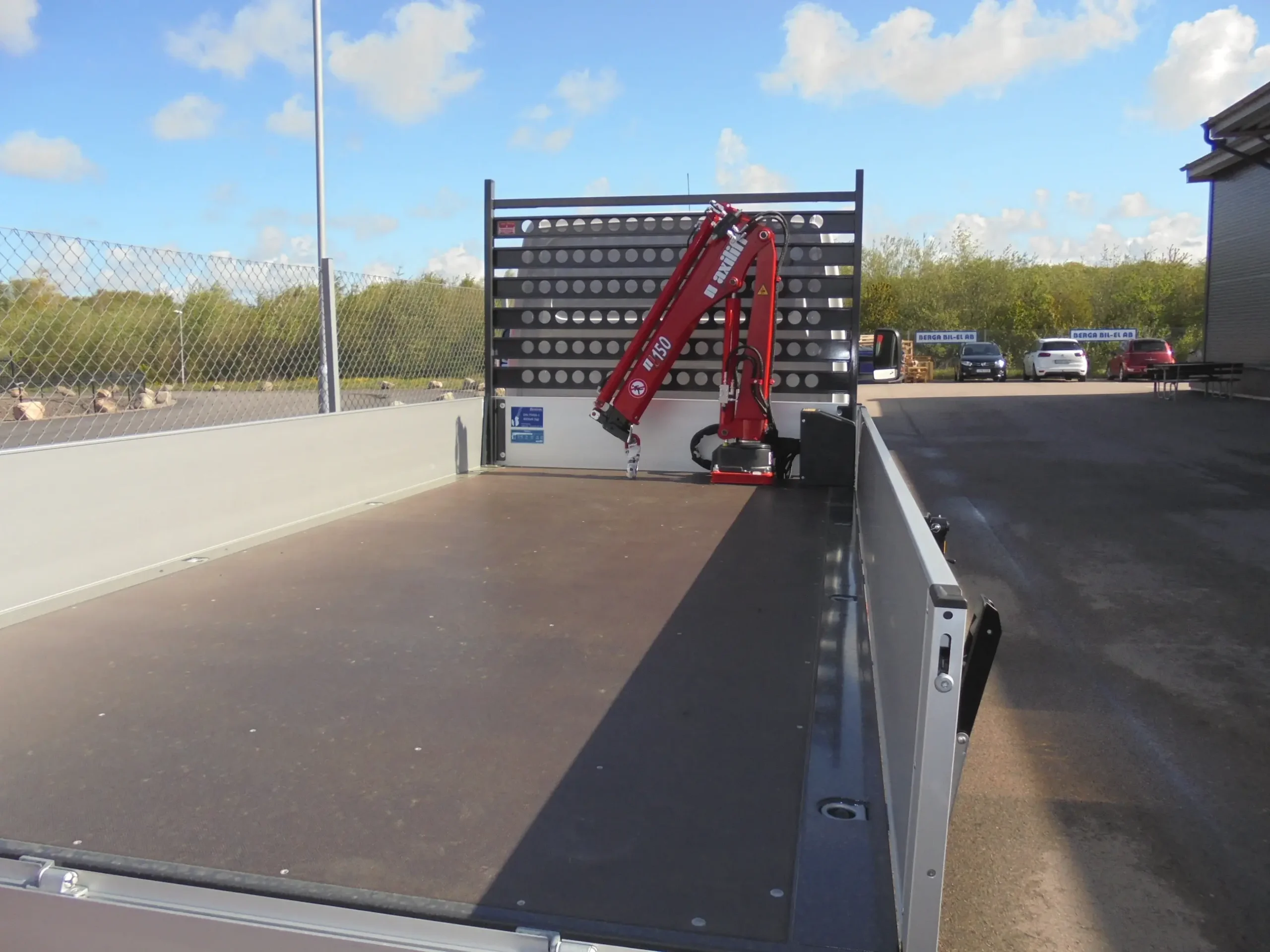

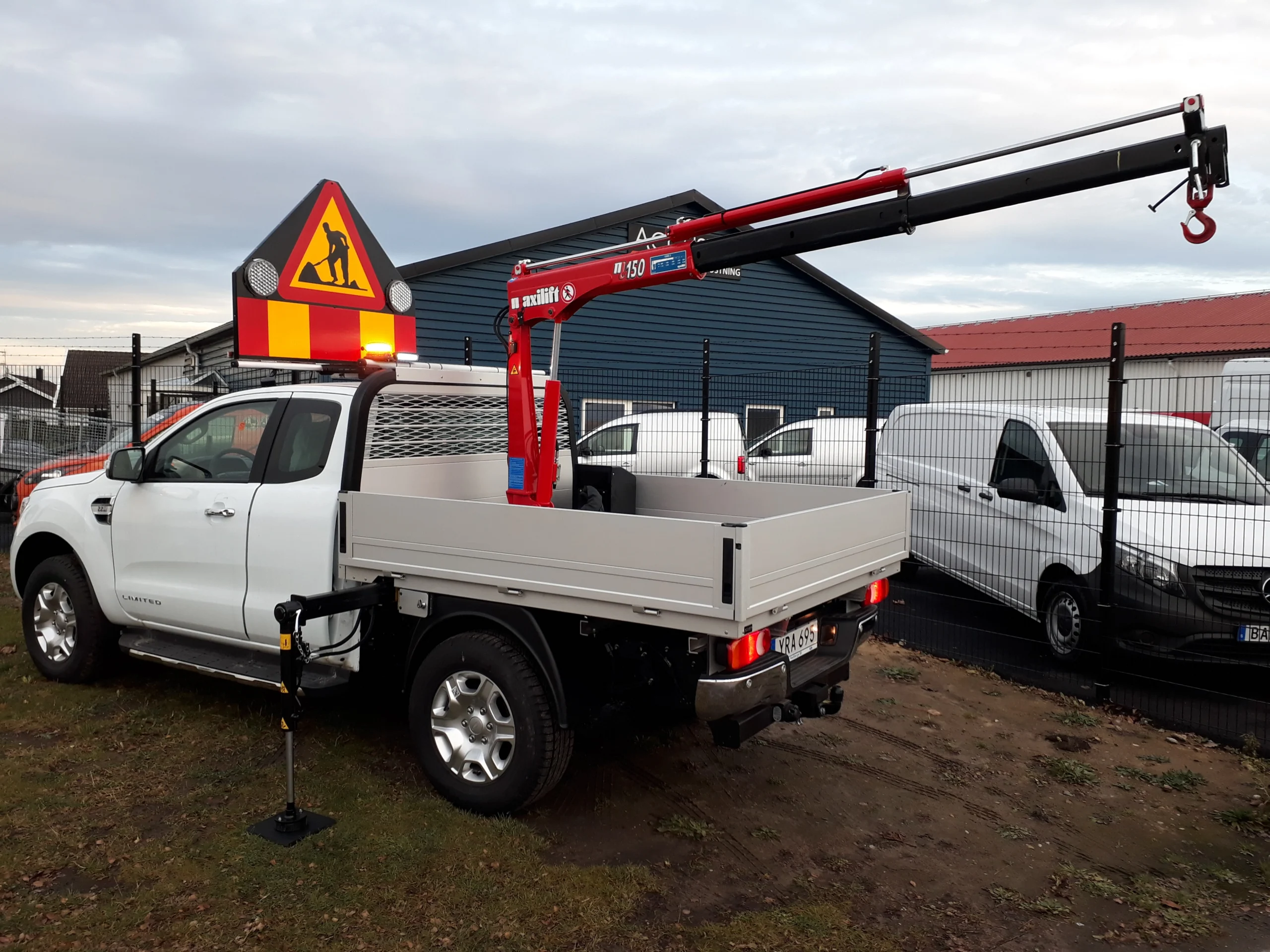

ML.150.2 – 2 hydraulic extensions
2 hydraulic extensions and 1 mechanical extension. Lifting and slewing are hydraulically operated. Select the operating mode in the menu. Lifts 1,300 kg at 1.16 m, 700 kg at 2.08 m, and 480 kg at 3.01 m. Two additional manual extensions can be selected in the menu; extension (A) then lifts 350 kg at 4.00 m, and extension (B) lifts 250 kg at 5.00 m.
Description

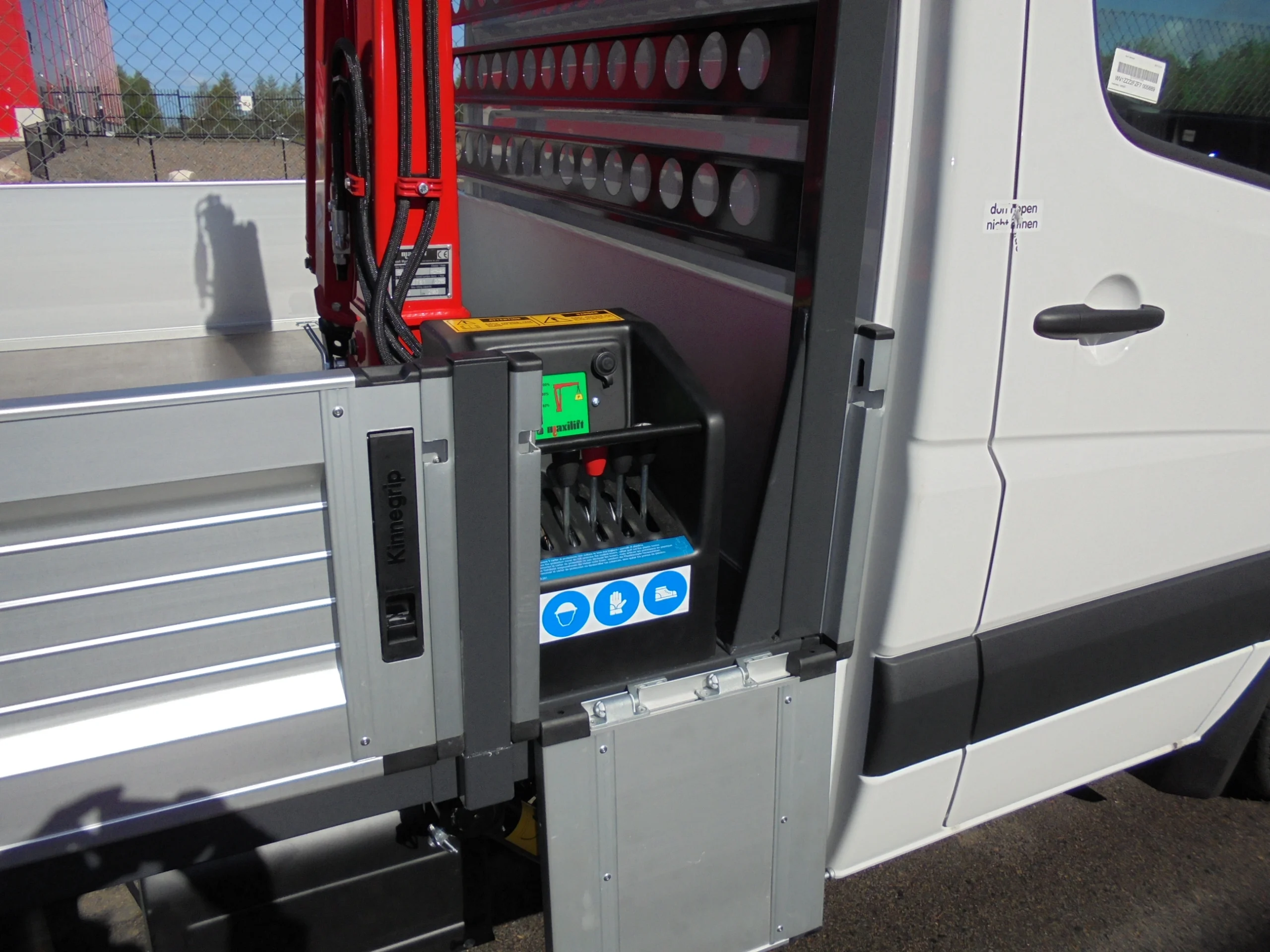

All cranes are CE marked and feature an Electronic Capacity Indicator on the control panel that displays the utilized crane capacity.
Specifications
| Max capacity (kg) | 1300.0 |
|---|---|
| Max reach (m) | 5.0 |
